Telescopic covers

Customer

Company*

Address*

Contact person*

Customer drawing No.*

Telephone*

Fax*

E-mail*

Date

1.1 No. of pieces

Serial production

Spare part

1.2 Requested form of telescopic cover

1.3 Working position of cover

Horizontal

Lateral

Vertical

Sloping

1.4 Requested stroke H(mm)

1.5 Shrank lenght L min (mm)

1.6 Max. extended lenght L max (mm):

1.7 Overlap of the biggest box Z1 (mm):

1.8 Overlap of the smallest box Z2 (mm):

1.9 Travel speed (m/min)

1.10 Size of the box

Width of the cover (mm)

Heigh of the cover - lef Rkl(mm)

Heigh of the cover - right Rkp(mm)

1.11 Materiál
Steel
Cr - Ni Steel

1.12 Slide way hardness˃60 HRC
Yes
No

1.13 Pevná (nepohyblivá) část krytu
the biggest
the smallest
none

2.1 Speed-up
a(m/s2)

2.2 Working environment
Wet
Dry
Combined

2.3 External loading of cover (cca. 80 kg)
Yes
No

2.4 Machine type

2.5 Axis
X
Y
Z

2.6 Environmental temperature<br>(°C)

2.7 Type of streight way (enclose the drawing)

3.1 Sort of wiper (see pictures)

3.2 Sliding shoe
Brass
Brass with a special sliding coat
Plastic

3.3 Supporting roller
Steel
Plastic

3.4 Special forms, spurious parts, fastening hole
Enclosed on a special sheet
None

3.5 Drawing, drafts, photos, remarque

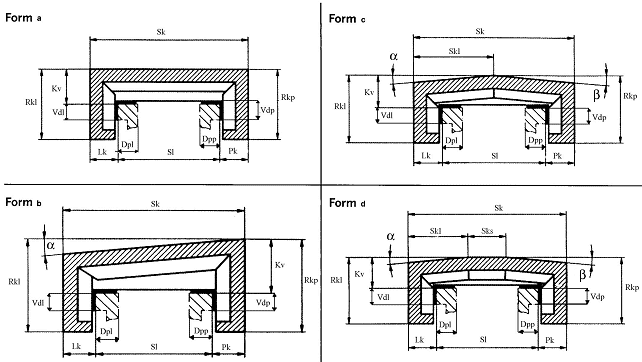

4.1 Dimension indication of cover
